MMR55-0002

MMX 4-Point Differential Lift Kit | G8x RWD & AWD | M2 | M3 |

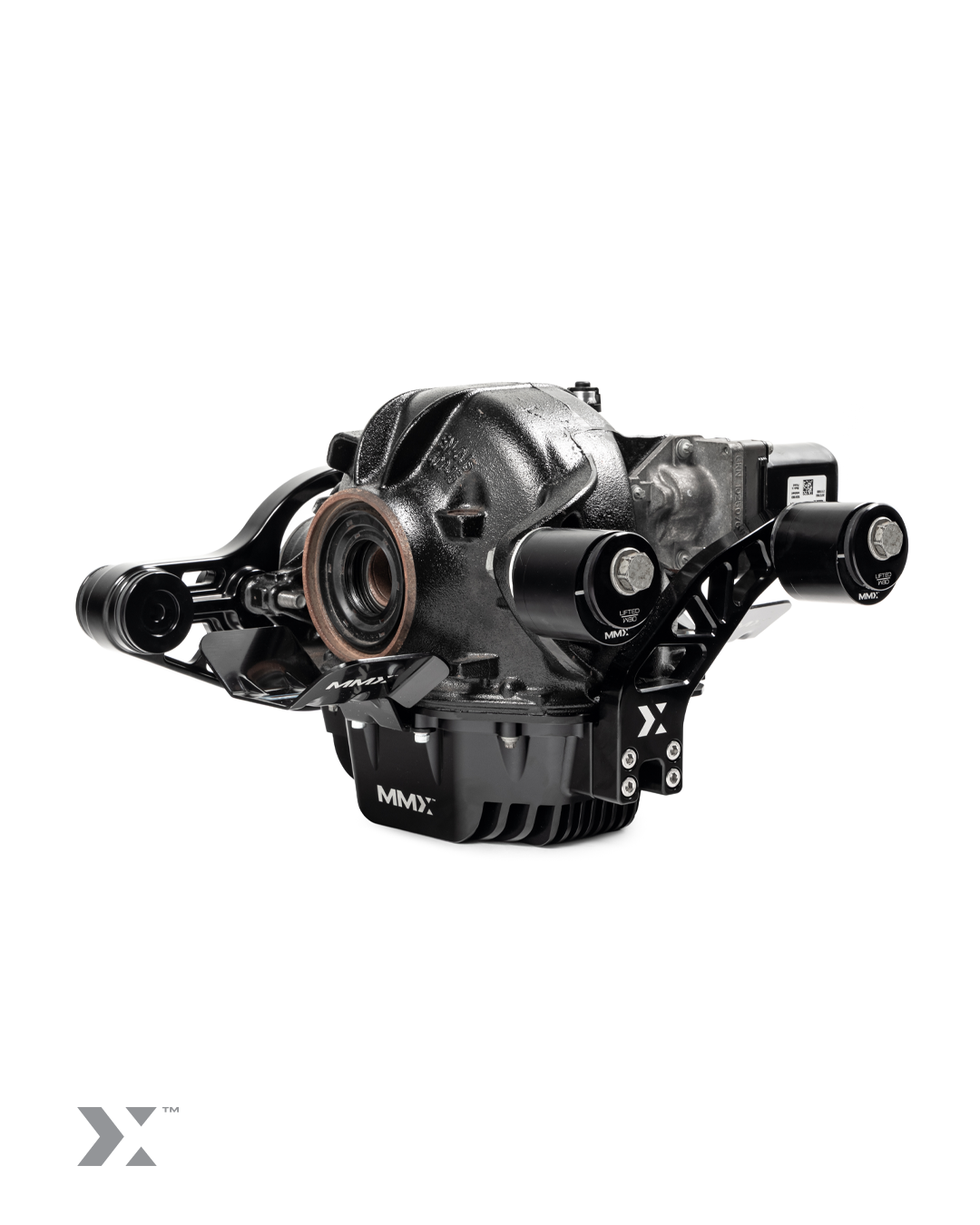

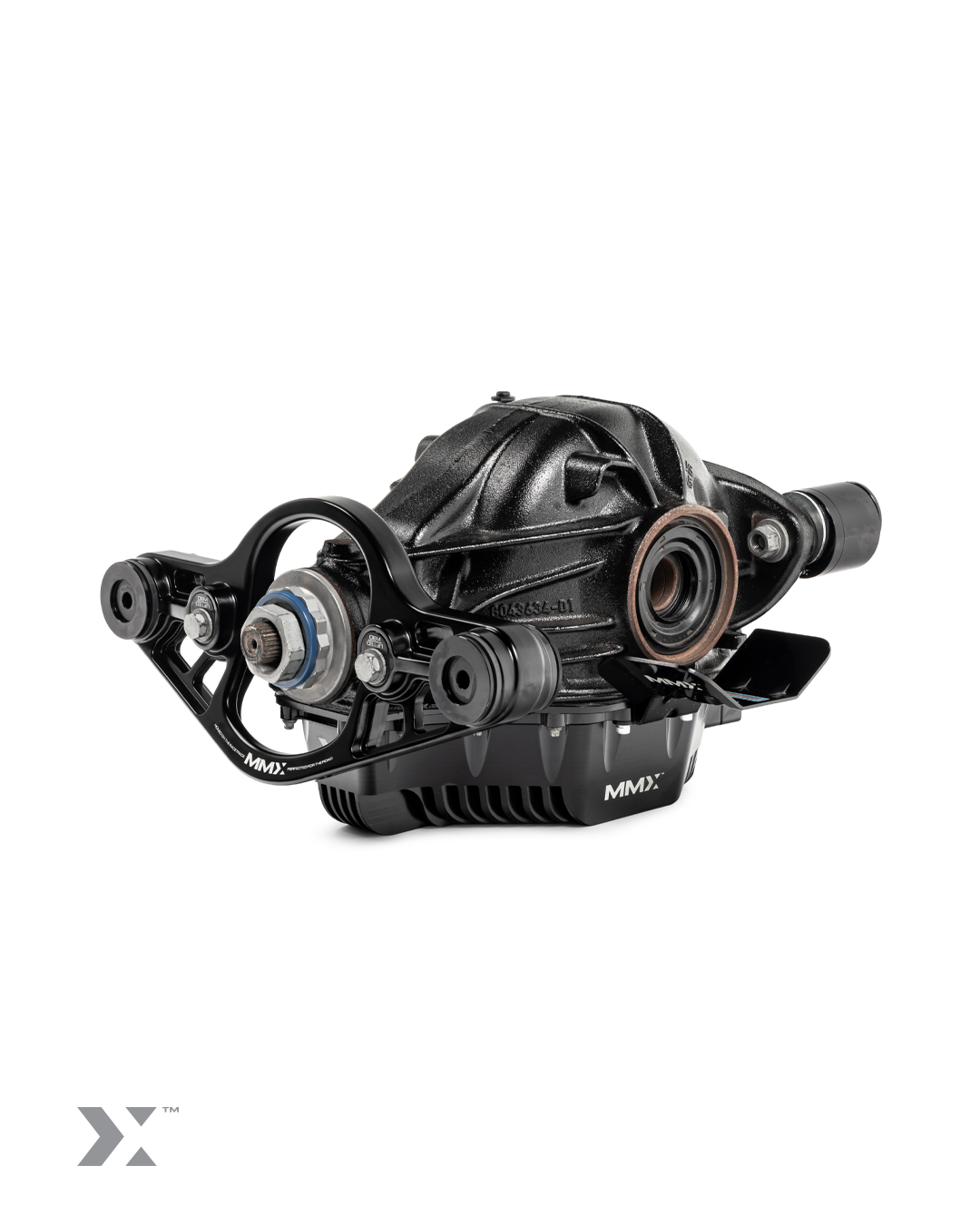

The MMX 4-Point Differential Lift Kit (MMR55-0002) bundles the Front Differential Lift Mount / Cradle (MMR55-1604), the Dual Differential Mount (MMR55-1606) and two Rear Diff Raised Poly Bushes (MMR55-1605) for the BMW G8x M2, M3 and M4, RWD and AWD. Fitted at OEM height it locks down the differential at four points, or set to Lifted it raises the whole diff by 10mm, correcting driveshaft geometry on lowered vehicles and reducing heat and premature wear on the axle shafts. Four points, matched together, ready to fit.

Four Points, Nowhere Left to Move.

The MMX 4-Point Differential Lift Kit (MMR55-0002) brings together everything needed to lock down differential movement on the BMW G8x M2, M3 and M4, RWD and AWD. The Front Differential Lift Mount / Cradle (MMR55-1604) replaces the OEM diff mount at the front, the Dual Differential Mount (MMR55-1606) adds a fourth mounting point BMW left unused from the factory, and two Rear Diff Raised Poly Bushes (MMR55-1605) take the rear positions. Bought as a kit, every part is matched, no guesswork over which pieces belong together.

Set to OEM height, the kit gives the differential nowhere left to move, tightening up every mounting point front, rear, top and bottom under hard acceleration and load changes. It's a significant step beyond the factory setup, which was engineered for comfort rather than control.

Set to Lifted, the same four points raise the whole differential by 10mm. This corrects the driveshaft geometry that gets thrown out on lowered G8x builds, taking the heat and premature wear off the CV joints and axle shafts that comes with running a lowered ride height. Every part is configured together at the point of fitting, matched at the same height throughout, nothing mixed.

For the complete build, the MMX Ultimate G8x Diff Kit (MMR55-0003) adds the High Capacity Diff Sump and Drive Shaft Heat Shields on top.

MMX 4-Point Differential Lift Kit | G8x RWD & AWD | M2 | M3 |
MMX 4-Point Differential Lift Kit | G8x RWD & AWD | M2 | M3 |
MMX 4-Point Differential Lift Kit | G8x RWD & AWD | M2 | M3 |
MMX 4-Point Differential Lift Kit | G8x RWD & AWD | M2 | M3 |
MMX 4-Point Differential Lift Kit | G8x RWD & AWD | M2 | M3 |
MMX 4-Point Differential Lift Kit | G8x RWD & AWD | M2 | M3 |
SKU: MMR55-0002

MMX 4-Point Differential Lift Kit | G8x RWD & AWD | M2 | M3 |

Sale price£1,111.96

Tax excluded. Shipping calculated at checkout

The MMX 4-Point Differential Lift Kit (MMR55-0002) bundles the Front Differential Lift Mount / Cradle (MMR55-1604), the Dual Differential Mount (MMR55-1606) and two Rear Diff Raised Poly Bushes (MMR55-1605) for the BMW G8x M2, M3 and M4, RWD and AWD. Fitted at OEM height it locks down the differential at four points, or set to Lifted it raises the whole diff by 10mm, correcting driveshaft geometry on lowered vehicles and reducing heat and premature wear on the axle shafts. Four points, matched together, ready to fit.

This kit contains 1 x MMX Front Differential Lift Mount / Cradle (MMR55-1604), 1 x MMX Dual Differential Mount (MMR55-1606) and 2 x MMX Rear Diff Raised Poly Bush (MMR55-1605).

In stock
Find a dealer

Vehicle fitment.

While every effort has been made to ensure the accuracy of vehicle information, we are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their specific vehicle and engine variant.

Series

G-Series

Chassis code

G80, G81, G82, G83 & G87

Model year

M2 (2023+), M3 & M4 (2021+)
